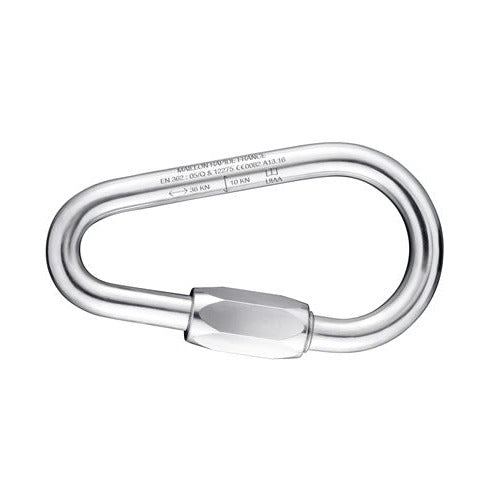

M10 Pear Shaped - Maillon - Quick Link
Description
M10 pear shaped maillon, zinc plated steel quick link forms a semi- permanent link when tightened with a spanner. Rated as PPE and supplied with certificate of conformity. Conformity: EN 362
10mm Pear Shape Galvanised Mild Steel Maillon Rapide
Specifications.
- Size: Height internally 98mm / Width internally 43.4mm /Gate Opening 20.5mm
- Conformity: EN362, EN12275 Type Q
- Breaking Load: 36kN / Working Load Limit (WLL) 720kg
Note: Also available in stainless steel, please contact us for this special order.
Specification
| Use | Industrial Products |
| Type | Maillon Quick Link |
| Shape | Pear |
| Gate Type | Screwgate |
| Gate Opening | 20-25mm |
| Conformity | EN362 |
| Conformity | EN12275 |
| Rating | Over 25 kN |
